Sunroof Drain hole Location

I have done a search,just before anybody offers that solution.

What I am looking for is to find out where the drain holes are located around the sun roof and if I can access them to check that they are clear.

I guess they are near the A and B pillar points,but I can't see them! - do I need to remove anything or are they too difficult to access from above?

Thanks

Post #299986 3rd Jun 2016 1:43 pm
View user's profile Send private message View poster's gallery Reply with quote
bxzx16v



Member Since: 11 Jul 2013
Location: Sunny Sheffield
Posts: 625

England 2012 Freelander 2 SD4 Sport Auto Barolo Black

I'm watching with interest for the location , the wife parks near trees at work and it gets covered in blossom.

Mark 2009 FL2 TD4 SE (Sadly gone)
2007 FL2 TD4 GS (The wifes , gone after 8 great years)
2012 FL2 SD4 SPORT LE(Gone and missing it)
2015 DISCOVERY SPORT 2.2SD4 HSE (For now ?)
2014 Ford Bmax 1.0 ecoboost ( Gone but what next )
2014 Ford Focus 2.0tdci Zetec S

Post #299996 3rd Jun 2016 4:04 pm
View user's profile Send private message View poster's gallery Reply with quote
Charliecloud



Member Since: 16 Mar 2014
Location: Kent
Posts: 118

United Kingdom 2007 Freelander 2 i6 HSE Auto Sumatra Black

Looks like we could be in for a bit of a wait

Post #300099 5th Jun 2016 6:01 pm
View user's profile Send private message View poster's gallery Reply with quote
bxzx16v



Member Since: 11 Jul 2013
Location: Sunny Sheffield
Posts: 625

England 2012 Freelander 2 SD4 Sport Auto Barolo Black

I'll make some enquiries Thumbs Up.

Mark 2009 FL2 TD4 SE (Sadly gone)
2007 FL2 TD4 GS (The wifes , gone after 8 great years)
2012 FL2 SD4 SPORT LE(Gone and missing it)
2015 DISCOVERY SPORT 2.2SD4 HSE (For now ?)
2014 Ford Bmax 1.0 ecoboost ( Gone but what next )
2014 Ford Focus 2.0tdci Zetec S

Post #300104 5th Jun 2016 6:21 pm
View user's profile Send private message View poster's gallery Reply with quote
mike e



Member Since: 18 Jan 2011
Location: WALES
Posts: 80

Wales 2014 Freelander 2 SD4 HSE Auto Santorini Black

drains run down b pillars both sides

Post #300120 5th Jun 2016 8:23 pm
View user's profile Send private message View poster's gallery Reply with quote
alex_pescaru



Member Since: 12 Mar 2009
Location: RO
Posts: 4640

The water is collected from above B pillar(s) and drained behind rear door(s).

Click image to enlarge

Post #300121 5th Jun 2016 8:25 pm
View user's profile Send private message View poster's gallery Reply with quote
bxzx16v



Member Since: 11 Jul 2013
Location: Sunny Sheffield
Posts: 625

England 2012 Freelander 2 SD4 Sport Auto Barolo Black

Thanks for that Thumbs Up .

Mark 2009 FL2 TD4 SE (Sadly gone)
2007 FL2 TD4 GS (The wifes , gone after 8 great years)
2012 FL2 SD4 SPORT LE(Gone and missing it)
2015 DISCOVERY SPORT 2.2SD4 HSE (For now ?)
2014 Ford Bmax 1.0 ecoboost ( Gone but what next )
2014 Ford Focus 2.0tdci Zetec S

Post #300123 5th Jun 2016 8:52 pm
View user's profile Send private message View poster's gallery Reply with quote
Charliecloud



Member Since: 16 Mar 2014
Location: Kent
Posts: 118

United Kingdom 2007 Freelander 2 i6 HSE Auto Sumatra Black

Thanks Alex - top man as usual Very Happy

Post #300153 6th Jun 2016 9:30 am
View user's profile Send private message View poster's gallery Reply with quote
Charliecloud



Member Since: 16 Mar 2014
Location: Kent
Posts: 118

United Kingdom 2007 Freelander 2 i6 HSE Auto Sumatra Black

Ok, so having found that I had a leak from the sunroof I needed to get it fixed.

The sunroof drain holes above the B pillar on both sides are inaccessible from above, no matter how you position the sunroof they are not able to be checked or worked on from above.

There are a few posts on here that tell you about taking out the roof liner. That looked a right pain, so this is how I did mine.

Drivers side: Remove sun visor, grab handles front and rear. Open doors front and rear and remove the seal around the door openings, it just pulls off.

Next remove the plastic trim alongside the fascia by the door opening, it just pulls off.

Open the flap marked ‘airbag’ on the A pillar it’s on a plastic hinge and opens towards the window,use a flat bladed screwdriver or a trim removal tool if you have one. Undo the captive torx screw and then pull off the A pillar cover.

Remove the lower section of the B pillar, it’s held by 4 plastic studs, it just pulls off. Then undo( mine opened towards the C pillar ) the flap marked ‘airbag’ on the upper section and undo the torx screw beneath . Then gently prise off the upper section and leave it hanging loose on the seat belt.

Repeat the above on the C pillar, although you won’t be able to remove it completely as it’s held by the lower rear wheel arch \ boot section, just pull it open at the top by a few inches.

Gently pull the roof liner down at the front, sides and around the sunroof opening, it is just held by spring clips. At this point you may get a shower as any residual water may decide to escape from any areas that it has been held in. You should now have room to work on the drain from the drivers seat.

Shine a bright torch directly above the B pillar and you should see the black hose that is a push fit onto the bottom of the drain – except in my case the hose was not connected as it must have worked loose! At this point you can either push something like strimmer cable through the hose or use a low pressure air line to ensure that it is not blocked. I secured my hose on to the drain using a small cable tie and a smidge of silicone.

Refitting is just a reverse of the above. Take your time and you won’t break or bend anything.

The passenger side is done using the same procedure.

Took me about 45 minutes each side. Although now having done it once I am sure I could reduce this time down to about 30 -35 mins a side


Last edited by Charliecloud on 19th Jun 2016 6:54 pm. Edited 1 time in total

Post #300743 14th Jun 2016 7:45 pm
View user's profile Send private message View poster's gallery Reply with quote
ricky64



Member Since: 29 Mar 2015
Location: wolverhampton
Posts: 141

United Kingdom 2007 Freelander 2 TD4 HSE Auto Stornoway Grey

This will cause a few discussions Very Happy
The drain holes are only there to drain the channels when the sunroof is open and to give an escape route for water that may be displaced when you tilt/open the sunroof.
If your sunroof seals are good and the roof is correctly fitted water should not get through to the drain holes when its closed.
really they are only a second line of defence for leaks.

Post #300881 17th Jun 2016 8:51 am
View user's profile Send private message View poster's gallery Reply with quote
alex_pescaru



Member Since: 12 Mar 2009
Location: RO
Posts: 4640

The water is collected from the exterior of the seal so the drain holes will always be wet....
When the sunroof is closed, the channels are still filling with water.
You can make an experiment and pour a cup of water on the crack between the sunroof glass and the body and you'll see the water coming out on the wheels....

Post #300909 17th Jun 2016 6:16 pm
View user's profile Send private message View poster's gallery Reply with quote
Charliecloud



Member Since: 16 Mar 2014
Location: Kent
Posts: 118

United Kingdom 2007 Freelander 2 i6 HSE Auto Sumatra Black

ricky64 wrote:
This will cause a few discussions Very Happy
The drain holes are only there to drain the channels when the sunroof is open and to give an escape route for water that may be displaced when you tilt/open the sunroof.
If your sunroof seals are good and the roof is correctly fitted water should not get through to the drain holes when its closed.
really they are only a second line of defence for leaks.


Not much discussion required really Yawn Where ever you got this gem from I would file it under 'tosh' Laughing

Post #301017 19th Jun 2016 8:13 pm
View user's profile Send private message View poster's gallery Reply with quote
ricky64



Member Since: 29 Mar 2015
Location: wolverhampton
Posts: 141

United Kingdom 2007 Freelander 2 TD4 HSE Auto Stornoway Grey

Got it from a land rover design technician!
spent 2 hours next to him on train, conversation got round to leaking sunroofs and why they made the drain tube connectors out of plastic about as strong as a matchmaker

Post #301027 19th Jun 2016 9:48 pm
View user's profile Send private message View poster's gallery Reply with quote
panda666uk



Member Since: 27 Mar 2015
Location: United Kingdom
Posts: 4

United Kingdom 2007 Freelander 2 TD4 HSE Auto Barolo Black

So did this do the job then ? my sunroof is leaking now and i'm just about to start striping the roof lining out.

My leak is coming down the front passenger pillar then into the foot well.

Thanks

Post #302343 9th Jul 2016 6:26 pm
View user's profile Send private message View poster's gallery Reply with quote
panda666uk



Member Since: 27 Mar 2015
Location: United Kingdom
Posts: 4

United Kingdom 2007 Freelander 2 TD4 HSE Auto Barolo Black

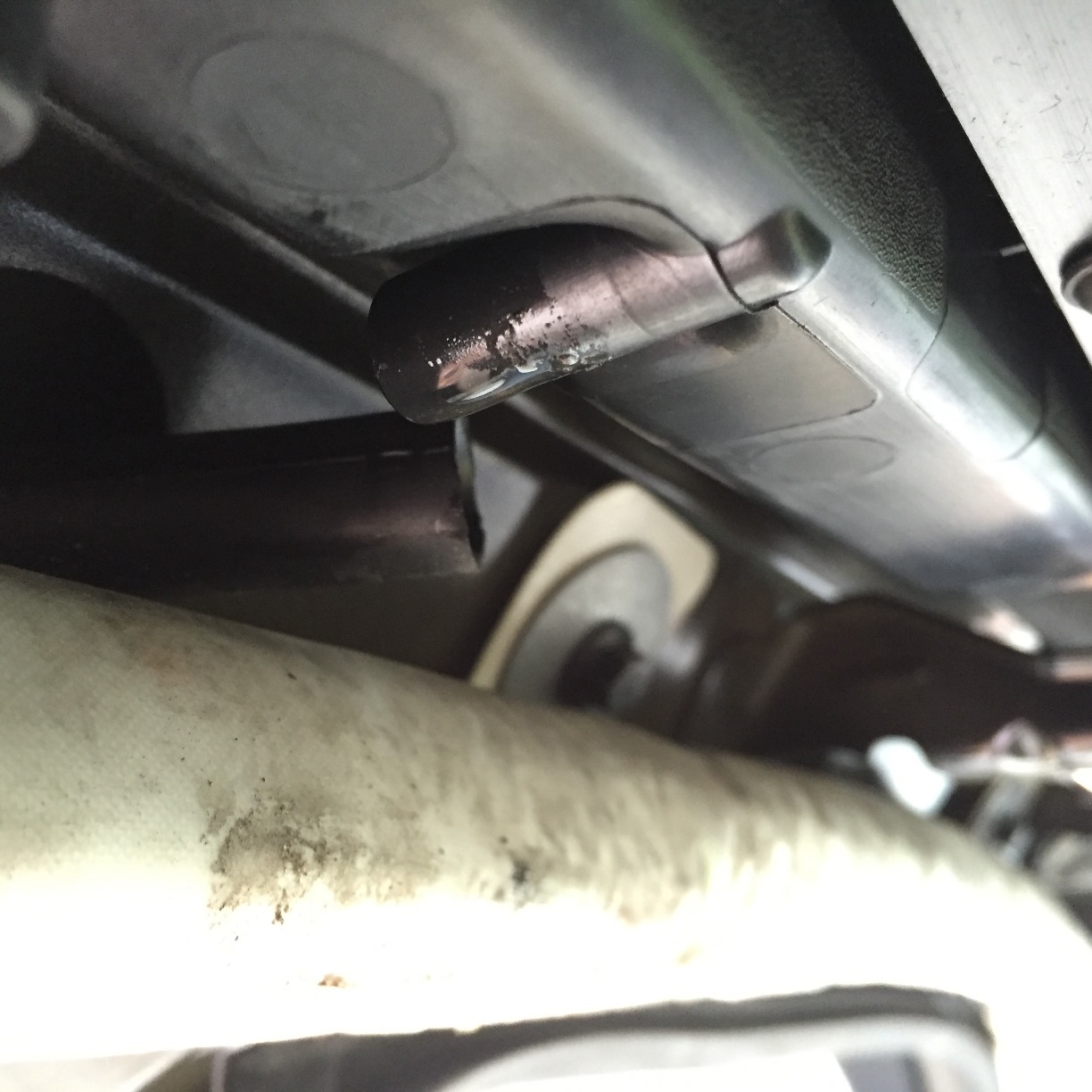

Don't worry, found the problem now lol! Bloody pipe had come off !.

Click image to enlarge

Post #302394 10th Jul 2016 11:45 am
